Engineering a Cold Room Condensing Unit to Survive 45°C+ Ambients

When planning a commercial refrigeration project, most contractors focus entirely on the compressor brand. However, mounting a premium compressor onto an undersized condenser is a fast track to system failure in extreme heat. Correct cooling capacity matching is what ensures your equipment runs reliably. The real challenge for EPC contractors in the Middle East and Africa is sourcing a fully integrated cold room condensing unit engineered specifically to reject heat in 45°C+ ambient conditions.

As an established assembly facility in Shanghai, Double Penguin doesn’t just supply parts. We design, braze, wire, and pressure-test complete refrigeration systems. We configure the right balance of heat exchange area, heavy-duty components, and compressor power to match your exact project parameters and budget.

Value Engineering: Compressor Options for Every Budget

Not every project requires top-tier European components, but every project demands high reliability. We help contractors implement value engineering—achieving the required cooling capacity while optimizing procurement costs. We build condensing units utilizing a matrix of proven brands:

Same cooling load, entirely different price structures. For instance, a 23HP low-temperature unit can be powered by a Bitzer 4GE-23Y or a Daming 4VD-20.2. For standard applications, the Daming configuration delivers comparable thermodynamic stability at nearly half the cost.

Standard open-type Bitzer condensing unit, featuring a heavy-gauge steel frame and high-ambient air-cooled condenser.

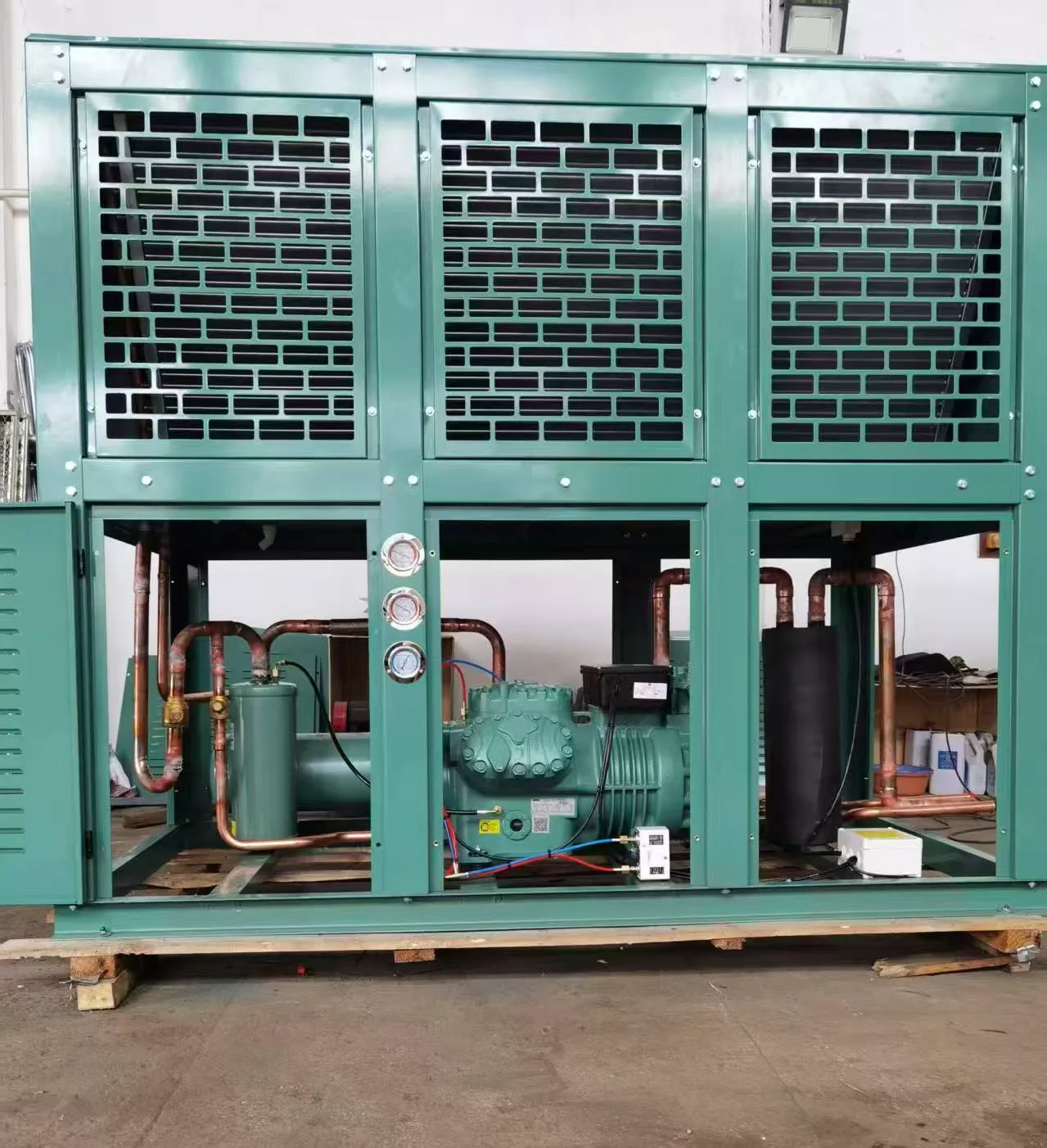

V-type box condensing unit powered by a Bitzer compressor, designed for outdoor installation and 45°C+ weather protection.

The Shanghai Assembly Standard: What’s Inside Our Units

A cold room condensing unit is only as strong as its weakest brazed joint or thinnest copper pipe. We do not cut corners on the Bill of Materials (BOM). Every standard unit assembled in our facility includes:

• Compressor (Brand selected based on your budget)

• High-Ambient Air-Cooled Condenser (Constructed with 0.3mm thick copper tubing to withstand extreme discharge pressures)

• Heavy-Gauge Steel Frame (Engineered to minimize vibrational fatigue)

• Oil Separator (Crucial for systems with long vertical pipe runs)

• Vibration Eliminator (Protects joints during transit and heavy operation)

• Solenoid Valve & Filter Drier (Protects the expansion valve from debris and moisture)

• Sight Glass, Pressure Controller & Gauges

• Pre-wired Terminal Box (Simplifies on-site electrical work)

• Liquid Receiver

• Seaworthy Export Wooden Packing (Built to handle rough port transfers)

Every unit is hydro-tested and undergoes a factory acceptance test (FAT) before it is packed into the export crate.

Case Study: Cutting Procurement Costs for a North African Contractor

In markets like Saudi Arabia, Libya, and West Africa, importing original European compressors often involves long lead times and high premiums. Recently, a Libyan contractor approached us for a 23HP low-temperature cold storage project. We provided two EXW quotes for the exact same cooling capacity:

• Option A: Bitzer 4GE-23Y open-type four-fan unit — premium tier pricing

• Option B: Daming 4VD-20.2 open-type four-fan unit — nearly half the cost of Option A

Both units were heavily customized for the local 45°C ambient climate, featuring 4 × 450mm oversized fan motors. Both included the complete BOM listed above. The contractor chose Option B, saving nearly 50% on procurement without sacrificing the heat-rejection capacity of the condenser.

Engineering Intake: Let Us Calculate Your Load

You do not need to guess the compressor model. Provide us with your raw site data, and our engineering team will calculate the thermal load and propose a complete system architecture. Just tell us:

1. Cold room dimensions (L × W × H)

2. Insulation panel thickness and type (e.g., 100mm PIR)

3. Product type and daily intake volume (e.g., 3 tonnes/day fresh meat)

4. Incoming product temperature (e.g., 30-35°C)

5. Target room temperature (e.g., +4°C or -25°C)

6. Maximum local ambient temperature (e.g., 45°C peak)

7. Site power supply (Voltage/Phase/Frequency)

Stop overpaying for standard configurations. Send us your cold room parameters, and we will provide a custom engineering proposal with multiple EXW pricing options based on your preferred compressor tier.

[ Send Your Cold Room Requirements for a Custom Configuration ]
