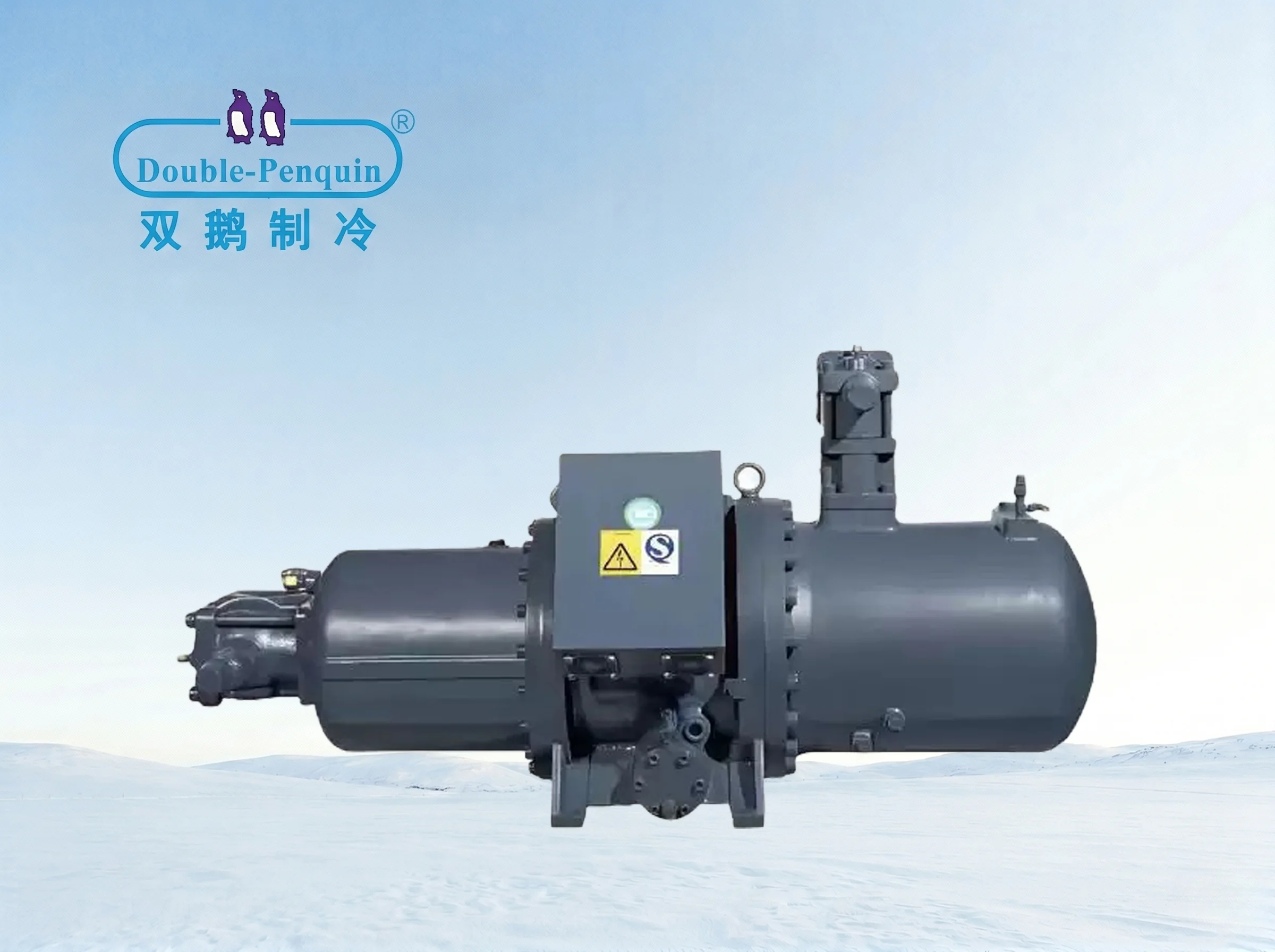

Hanbell Screw Compressor - Double Penguin Refrigeration

Key Features:

High-Precision Asymmetric Rotors: 5-to-6 gear profile design provides higher volumetric efficiency and ultra-low noise levels.

Smart System Integration: Built-in advanced sensors and protection modules make it exceptionally easy to integrate into modern, automated plant control systems (PLC/BMS).

Superior Oil Separation: Integrated multi-stage oil separators ensure minimal oil carry-over, maintaining high heat transfer rates in the evaporator.

Ideal Applications: Centralized HVAC chillers, large food processing plants, and industrial ice-making facilities.

Parameters:

Model	Rated Nominal Power (HP)	Displacement (m³/h @ 50/60Hz)	Standard Oil Charge (L)	Net Weight (kg)	Optional Built-in Vi Ratio
RC2-100A	23	98 / 118	7	275	2.2, 2.6, 3.0, 3.5, 4.8
RC2-140A	32	137 / 165	7	280	2.2, 2.6, 3.0, 3.5, 4.8
RC2-180A	42	180 / 216	7	300	2.2, 2.6, 3.0, 3.5, 4.8
RC2-200A	45	193 / 233	8	420	2.6, 3.0, 3.5
RC2-230A	53	230 / 277	14	540	2.6, 3.0, 3.5
RC2-300A	67	293 / 352	16	590	2.6, 3.0, 3.5
